Trainer Tethyx

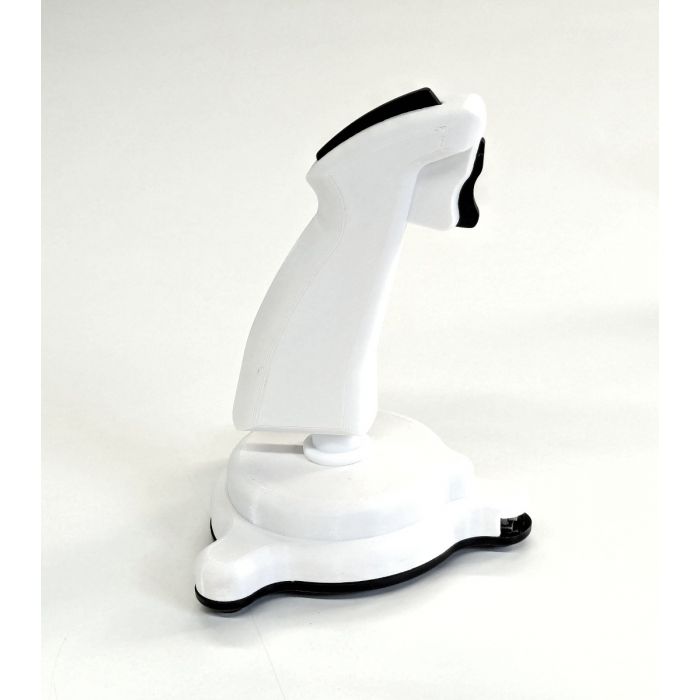

Identical copy of the fiber optic joystick response (HHSC-JOY-5-V2) device for use outside the magnet.

Specifications

• Two axis shaft encoder control
• Angular range: 30 degrees (+/-15 degrees)
• USB outputs are available for Windows, Mac and Linux computers.
• Two 1 in. (2.5 cm) long levers on grip for thumb and trigger buttons.
• Grip: 4.5 tall (11.5 cm)
• Overall height: 6.0 in. (15.24 cm); Base: 1.5 in.(3.75 cm) high, 4.5 in. (11.25 cm) diameter
• Powered by USB port on a computer

Version 2, redesigned in 2024, is exactly the same as the HHSC-JOY-5 in shape and feel, though the material weighs a bit less. Instead of using machined Corian, both the grip and the base are made through high-quality 3-D printing. There are big advantages to this change including: a few internal, unseen design improvements. The new version is a bit more robust. Importantly, it takes a little less time to make, so we are able to reduce the price by $100.

This device is not for use inside the magnet room: it contains metal and electronic components.
